Products
Every product built maintenance-free.
From the electrode below ground to the pit cover above it, every product is manufactured to work together as one earthing system.

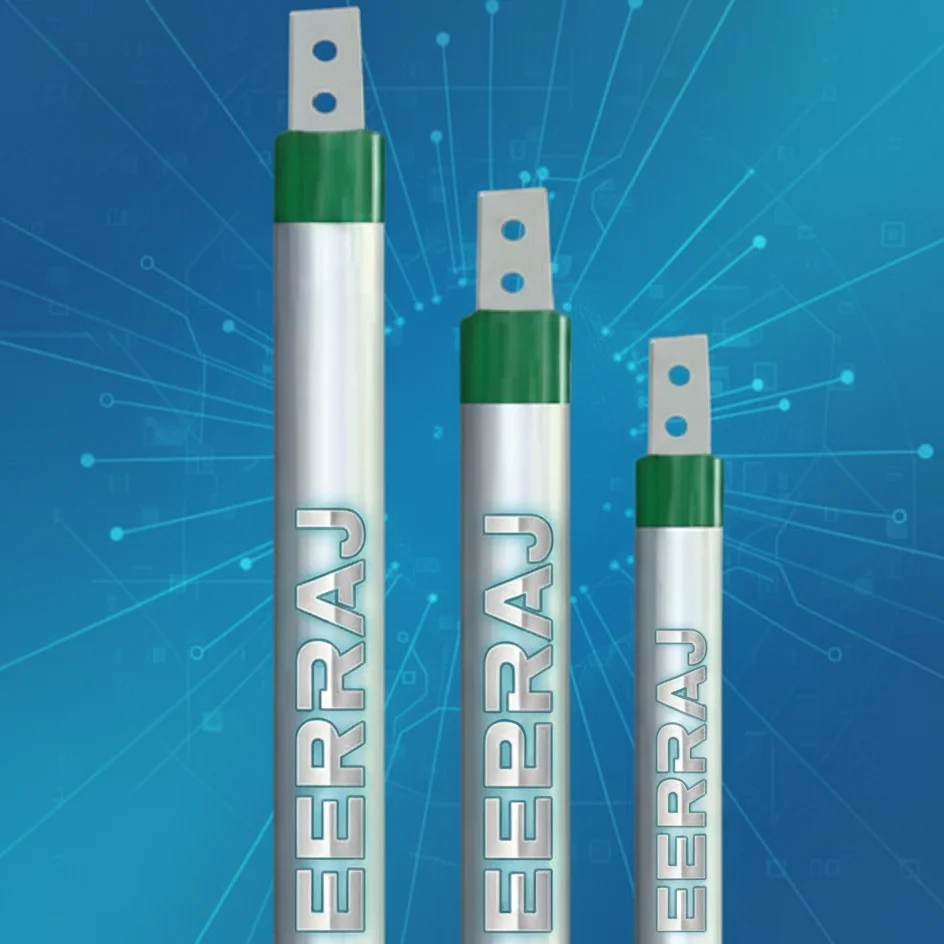

01 / GI earthing electrodes
Hot-dip galvanized, built for every soil type.
Manufactured from high-quality hot-dip galvanized iron (HDGI) for strong conductivity and long-term durability. Pipe-in-pipe technology gives effective fault current dissipation, and the electrodes stay reliable in all soil and weather conditions with minimal maintenance.
- Material: Hot-dip galvanized iron (HDGI)
- Length options: 1.5 m, 2 m, 3 m (custom sizes available)
- Outer pipe thickness: 2.5 mm – 3.5 mm
- Terminal size: 25×3 mm / 40×6 mm
- Coating: 80–100 microns of galvanization
- Applications: Homes, offices, factories, hospitals, telecom towers, solar plants

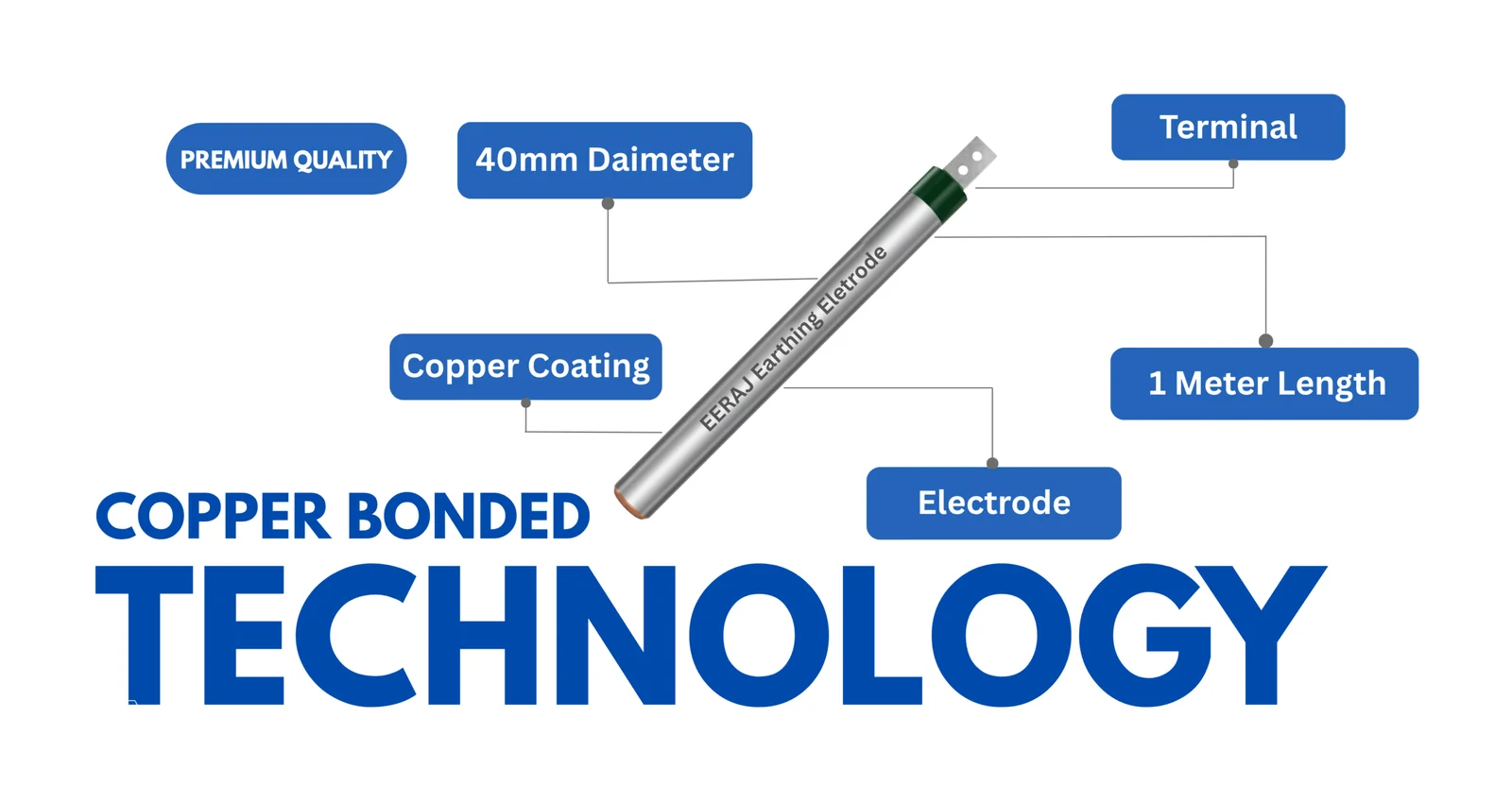

02 / Copper bonded earthing electrodes
A molecularly bonded copper layer that won't peel.
A mild steel core with a thick copper coating delivers superior conductivity, corrosion resistance, and long-term reliability. Ideal for critical applications such as telecom, solar plants, and substations, with consistent earthing results in all soil conditions.
- Material: Mild steel core, 100–250 micron copper coating
- Length options: 1.5 m, 2 m, 3 m (custom sizes available)
- Outer diameter: 48 mm / 50 mm
- Technology: Molecularly bonded copper layer
- Maintenance: Easy to install, maintenance-free
- Applications: Telecom towers, solar systems, data centres, substations

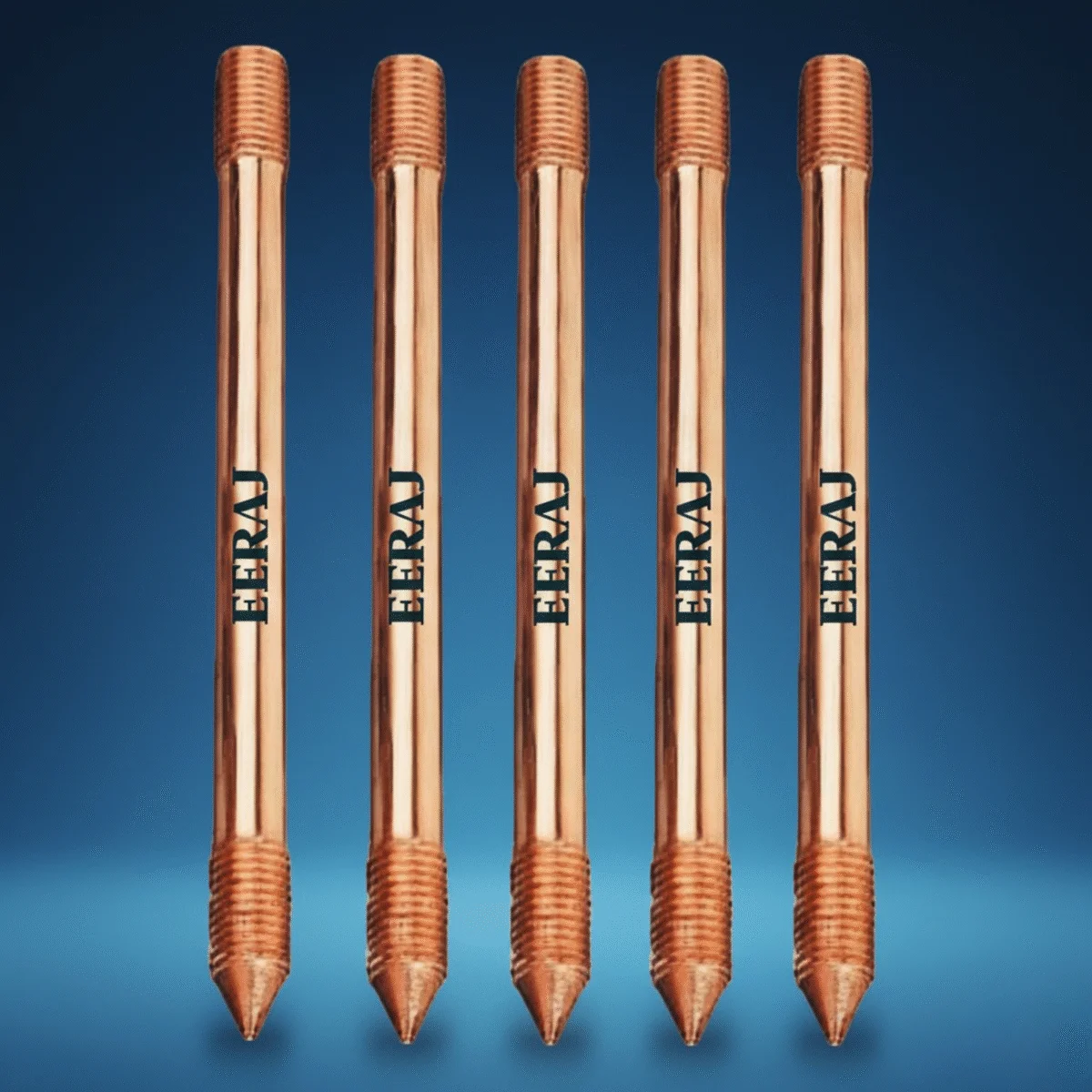

03 / Pure copper earthing electrodes
100% electrolytic-grade copper, for zero compromise.
Made from high-conductivity, 100% pure copper for maximum efficiency and durability. Ideal for sensitive, high-performance electrical systems where stable, low-resistance earthing is critical — with exceptional corrosion resistance and a long service life.
- Material: 100% pure electrolytic-grade copper
- Length options: 1.5 m, 2 m, 3 m (custom sizes available)
- Outer diameter: 40 mm / 50 mm
- Maintenance: Virtually maintenance-free, long operational life
- Applications: Hospitals, data centres, refineries, substations, commercial complexes

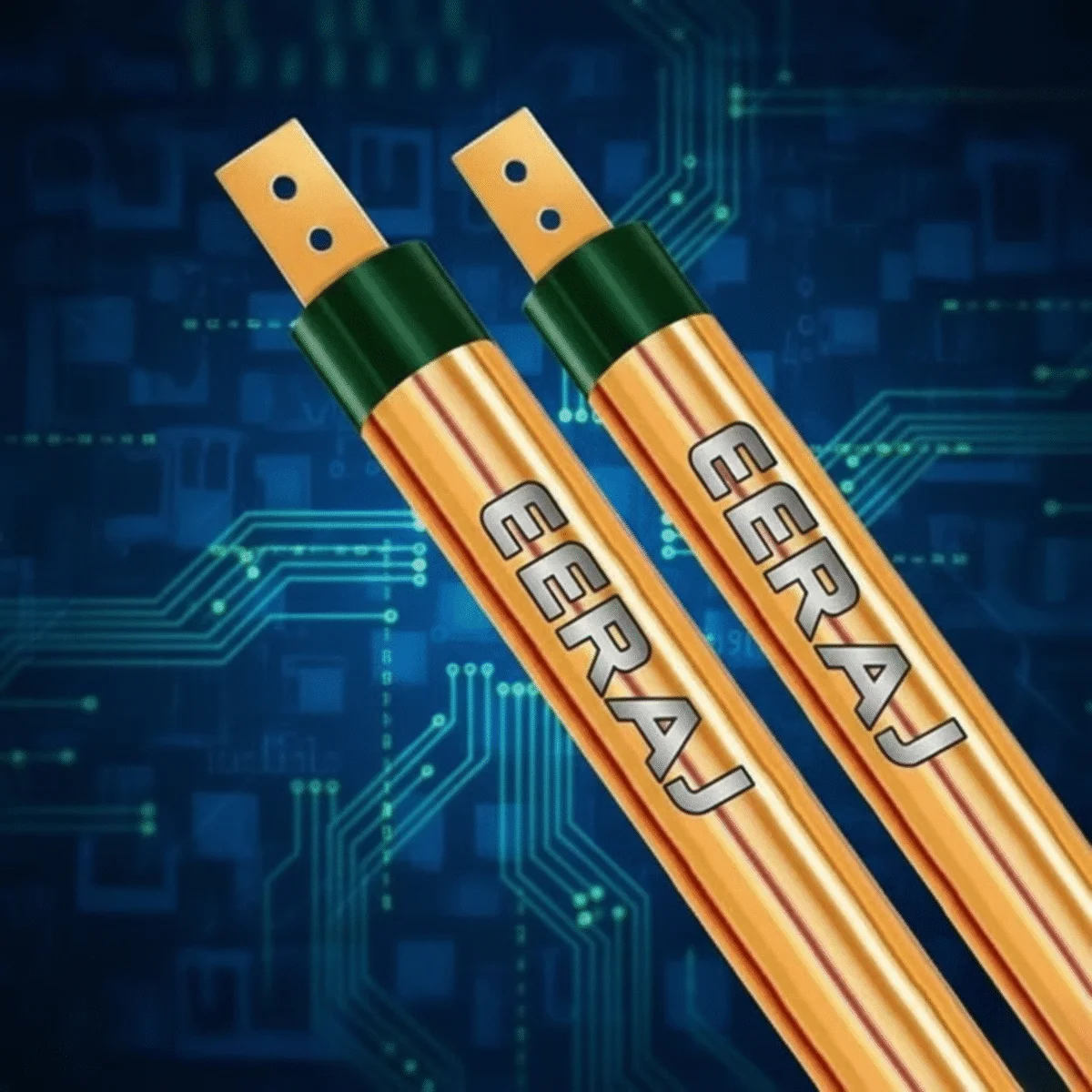

04 / Copper terminal earthing electrodes
Galvanized strength, copper-terminal conductivity.
Combines the strength of galvanized iron with the superior conductivity of copper. A GI base pipe fitted with a copper terminal ensures efficient current flow and easy connection during installation — stable, long-lasting performance in all soil types.
- Material: Hot-dip galvanized iron with copper terminal
- Length options: 1.5 m, 2 m, 3 m (custom sizes available)
- Outer diameter: 40 mm / 50 mm
- Terminal size: 25×3 mm / 40×6 mm
- Technology: Hybrid design — mechanical strength + electrical efficiency
- Applications: Industrial units, commercial buildings, residences, solar systems

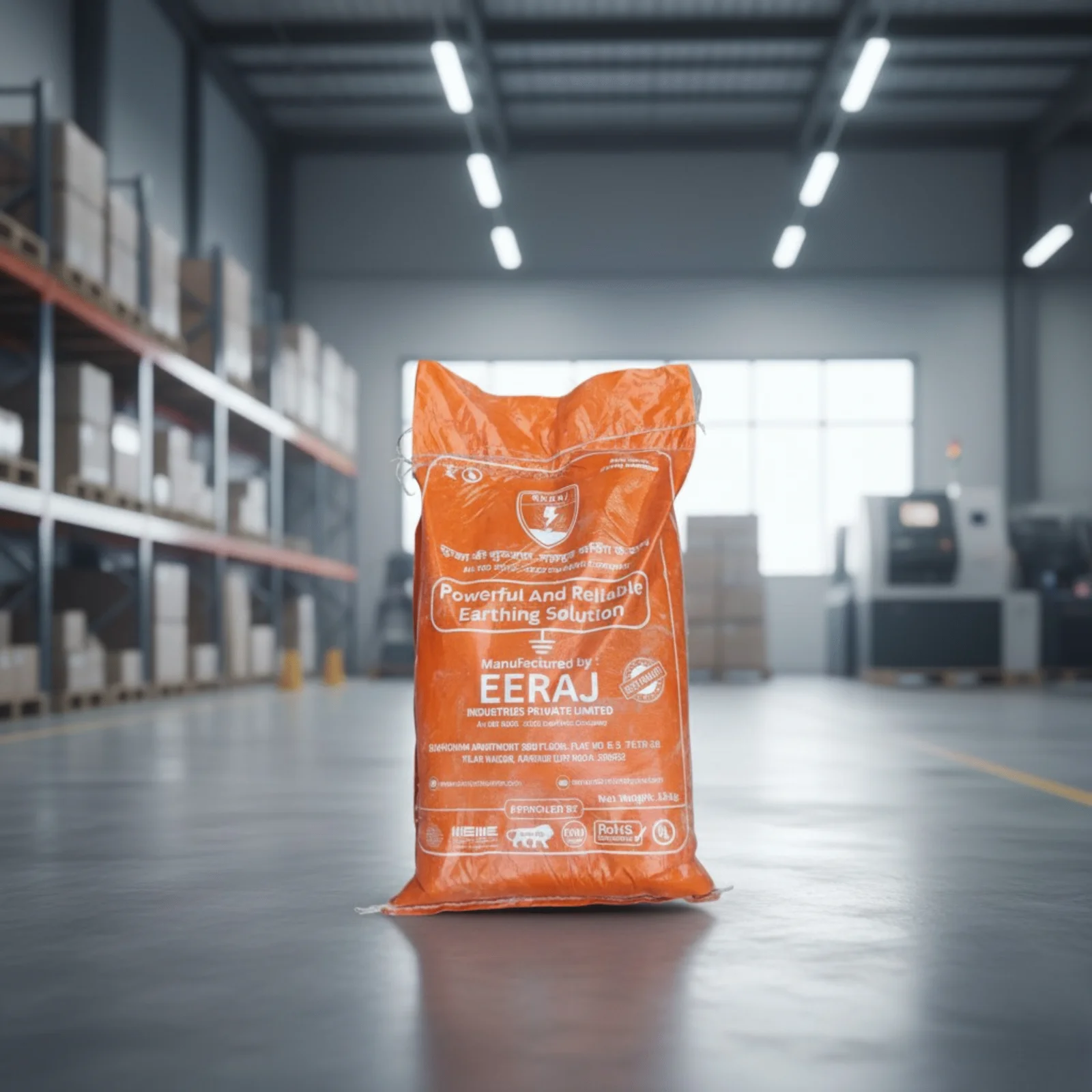

05 / Backfill compound (BFC)
Stable resistance, whatever the season.
A specially formulated conductive material designed to improve the efficiency and longevity of earthing systems. It enhances soil conductivity, retains moisture around the electrode, and ensures consistent performance throughout the year — with no periodic watering or replacement needed.
- Composition: Bentonite, graphite & conductive minerals
- Type: Non-corrosive, non-toxic, environmentally safe
- Resistivity: Extremely low, for better current dissipation
- Packaging: 25 kg and 50 kg bags (custom packaging available)
- Applications: Residential, industrial, and solar installations

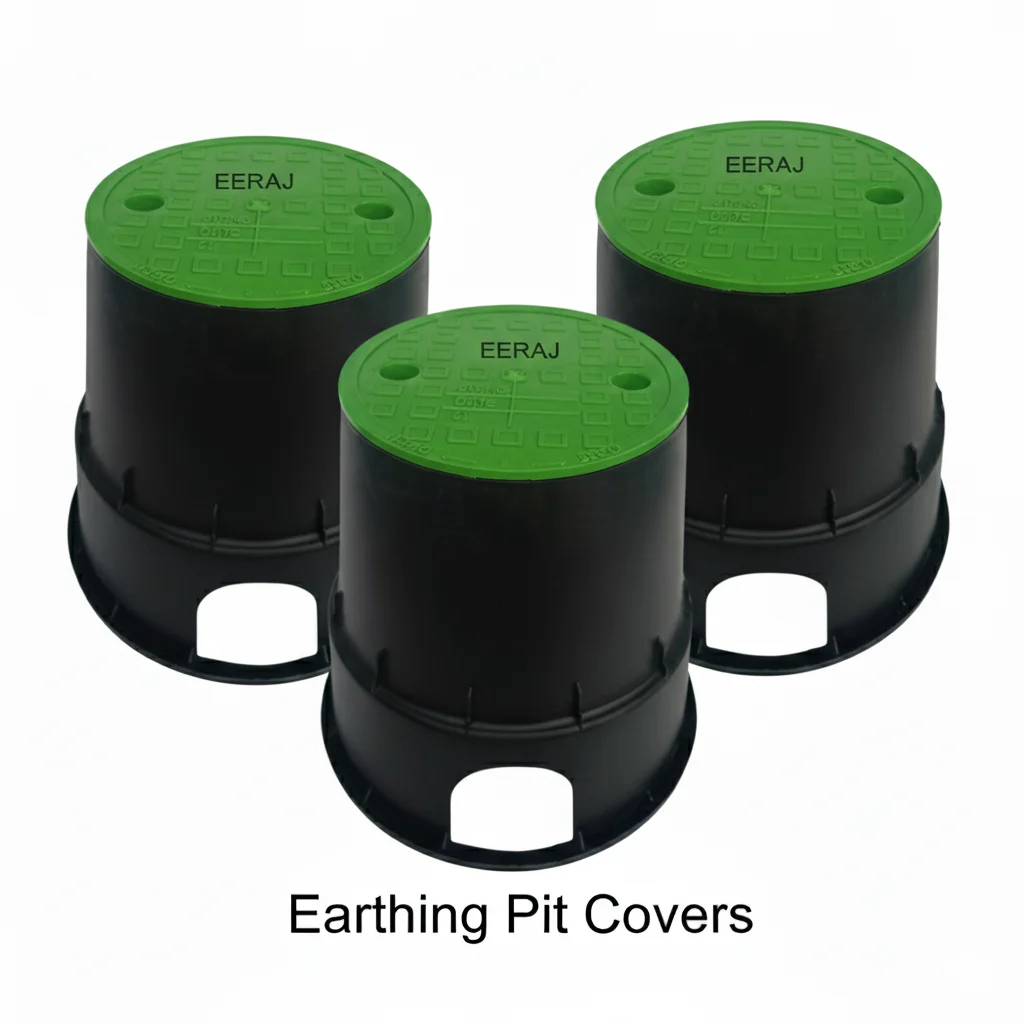

06 / Earthing pit covers
Protect the pit. Keep access easy.
Designed to protect and provide easy access to earthing chambers after installation. Made from high-strength, weather-resistant materials, our pit covers safeguard electrode connection points from physical damage, water accumulation, and environmental wear — while keeping a neat, professional finish.
- Material: HDPP or fibre-reinforced plastic (FRP)
- Shape options: Round and square
- Sizes: 300 mm, 350 mm, 400 mm diameter (custom on request)
- Colours: Standard green or black (custom available)
- Maintenance: No maintenance required, UV-stabilised

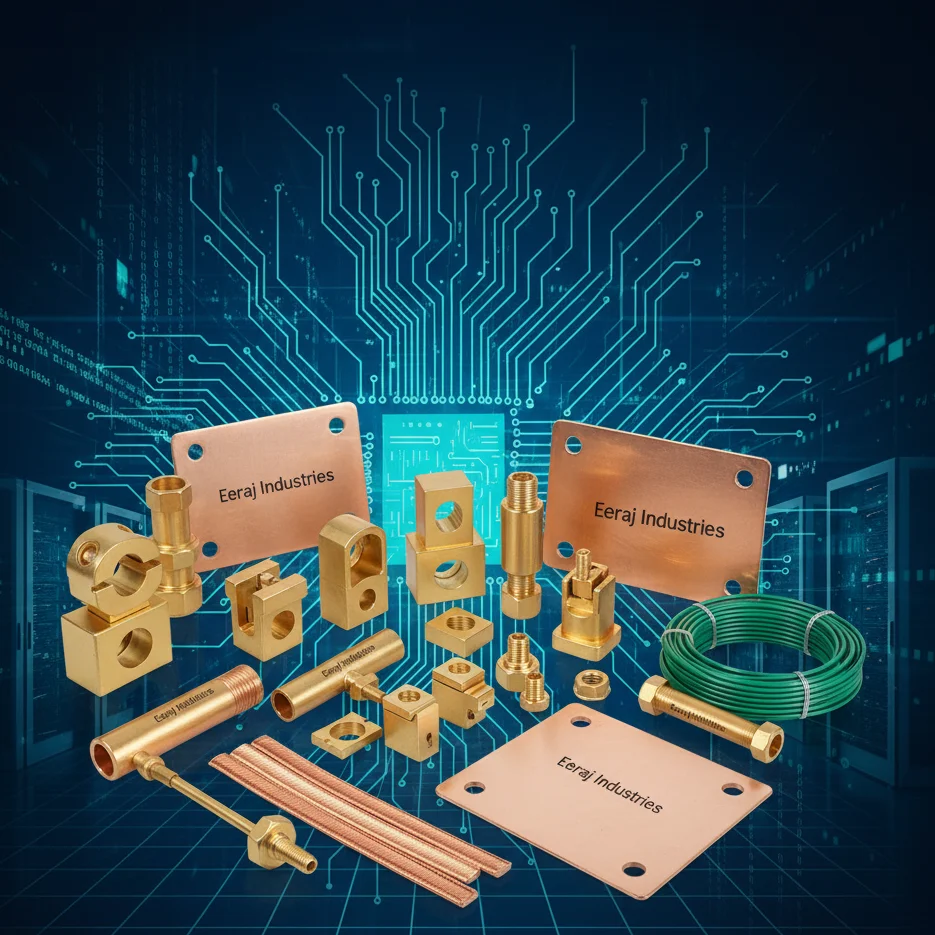

07 / Earthing accessories
Everything needed for a complete installation.
Clamps, terminals, lugs, connectors, GI and copper wire — the full range of accessories that make an earthing installation efficient, secure, and easy to inspect.
Quality you can trust & rely on
